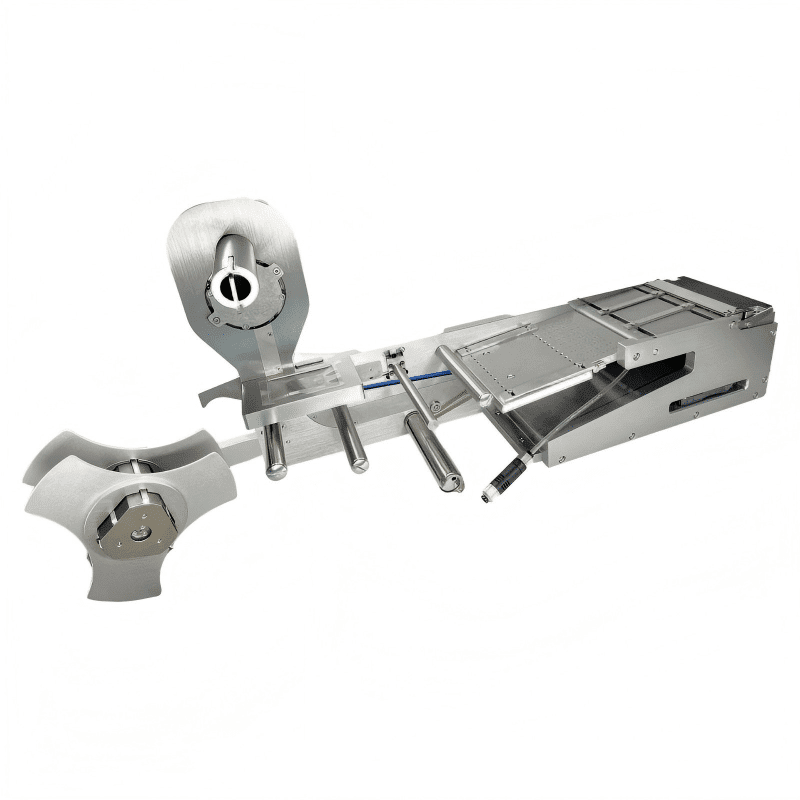

SMT label feeder for Panasonic Yamaha Fuji

Our SMT Label Feeder provides automatic label feeding solutions for different pick and place machine platforms, including Panasonic, Yamaha and FUJI. It peels labels from the backing paper and delivers them to the pickup position, helping reduce manual handling and improve feeding consistency in SMT production. Different feeder configurations are available according to machine compatibility and label specifications.

Additional information

Product Types

Paper labels/Protective film/Foam/Double-sided adhesive/Conductive adhesive/Copper foil/Steel sheet/Reinforcement plate, etc.

Label Length*Width

≥ 2mm, ≤ 35mm/50mm/100mm

Bottom film Width

≥ 4mm, ≤ 40mm/55mm/105mm

Reel Holder Core Size

Standard Inner d 3 inches(76.2mm), Outer D 8 inches(200mm)

Feeding Position Accuracy

X-axis ±0.1mm; Y-axis ±0.1mm

Feeding Speed

Max 120mm/s

SMT label feeder for Panasonic Yamaha Fuji

Product Details:

SMT Label Feeder for Different Pick and Place Machine Platforms

Different SMT pick and place machines require different feeder configurations.

Our SMT Label Feeder solutions are designed for selected machine platforms, including Panasonic, Yamaha, FUJI and other major SMT brands.

Each feeder version is developed according to the corresponding machine interface, feeder base height and communication requirements.

Automatic Label Feeding for PCB Assembly

The SMT Label Feeder automatically separates labels from their backing paper and delivers them to a fixed pickup platform.

The pick and place head then picks up each label according to the machine program.

This feeding method helps reduce manual label handling and supports more consistent label placement in PCB assembly production.

How Does the Label Feeder Work?

  1. The feeder receives a feeding command from the pick and place machine.
  2. The MCU controls the stepping motor to move the label strip forward.
  3. The label is peeled from the backing paper.
  4. A photoelectric sensor checks the feeding position and detects material shortage or feeding jams.
  5. The label is delivered to the pickup window for the placement head.

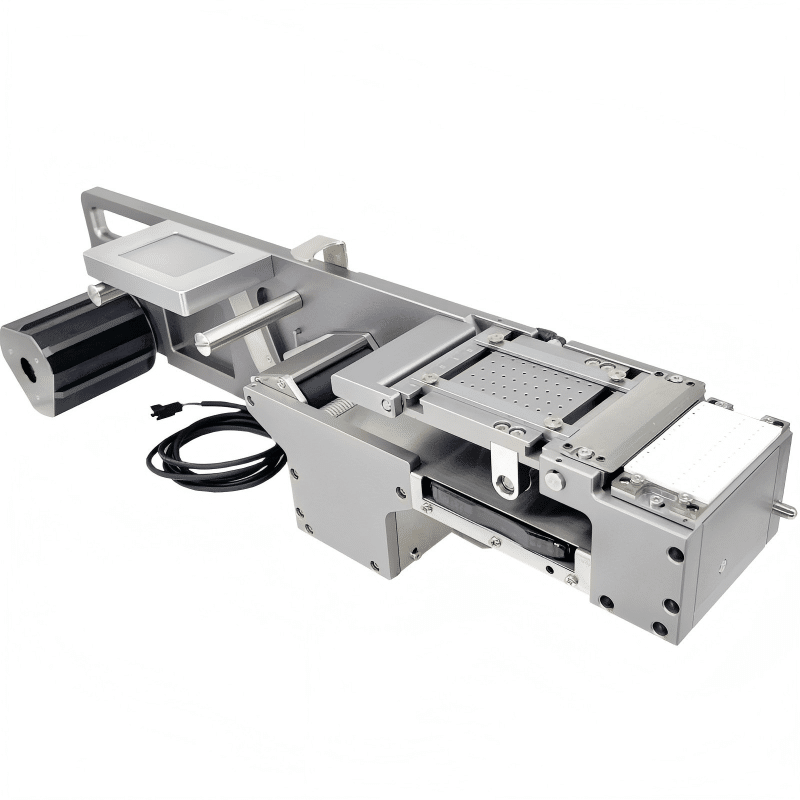

SMT label feeder installed on a pick and place machine for automatic PCB label placement

Compatible Machine Platforms

We provide different feeder configurations for selected platforms, including:

  • Panasonic pick and place machines
  • Yamaha pick and place machines
  • FUJI NXT and XPF machines
  • Other SMT platforms subject to compatibility confirmation

Important: One label feeder cannot be used on every pick and place machine. Different platforms may have different feeder base heights and communication interfaces.

For example, FUJI NXT and XPF can share a compatible feeder version according to their matching feeder base height and communication.

However, ASM SIPLACE D Series and SX Series require different feeder configurations.

Label Materials and Applications

Depending on the feeder configuration, supported materials may include:

  • Paper labels
  • Protective films
  • Foam materials
  • Double-sided adhesive materials
  • Conductive adhesive materials
  • Copper foil
  • Steel sheets
  • Reinforcement plates

Customized Label Feeding Applications

Label size, bottom paper width and material properties all affect feeder selection.

We recommend checking the label specifications before ordering, especially when using non-standard label shapes or special backing materials.

Request a Label Feeder for Your SMT Machine?

To help us recommend the correct configuration, please provide:

  • Pick and place machine brand and model
  • Label length and width
  • Bottom paper width
  • Label material
  • Single-row or multi-row arrangement

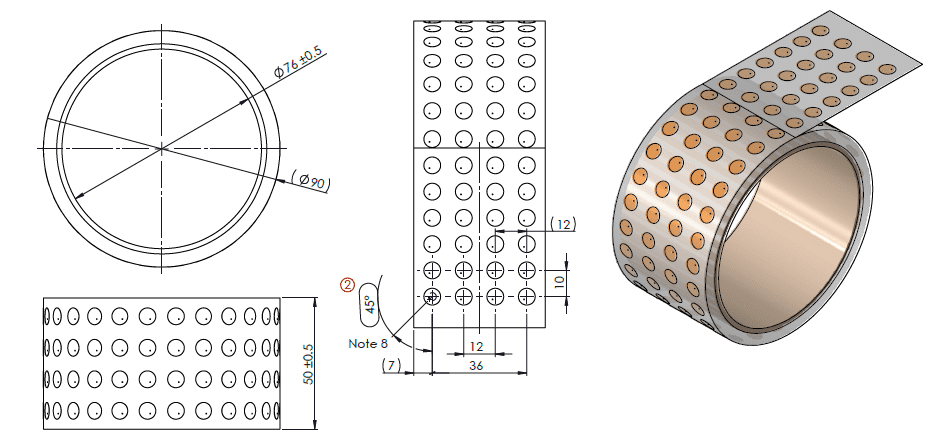

  • Label sample photo or drawing

Our team will review the application and confirm the suitable feeder configuration.

FAQ – SMT Label Feeder Compatibility

1. Can one SMT label feeder be used for Panasonic, Yamaha and FUJI machines?

No. It can’t. Different machine platforms may require different feeder interfaces, base heights and communication systems. The correct feeder version must be selected for each machine.

2. Can one label feeder work with both FUJI NXT and XPF machines?

Yes, It can. Their platforms have the same feeder base height and communication requirements for this feeder application.

3. Can ASM SIPLACE D Series and SX Series share one label feeder?

No. It can’t. Their feeder base heights and communication requirements are different. The X Feeder height is 178 mm, while the D Feeder height is 100 mm.
