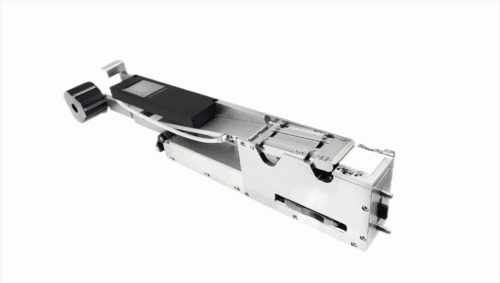

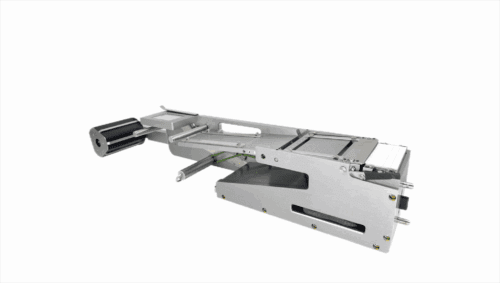

The FUJI NXT Label Feeder is designed for automatic label feeding in SMT production. It peels labels from the backing paper and delivers them to a fixed pickup position for the placement head. Compatible with selected FUJI NXT and XPF platforms, it helps reduce manual handling and improve label feeding consistency.
| Label Types | Paper labels/Protective film/Foam/Double-sided adhesive/Conductive adhesive/Copper foil/Steel sheet/Reinforcement plate, etc. |
|---|---|
| Label Length | ≥ 2mm, ≤ 20mm/35mm/80mm |
| Label Width | ≥ 2mm, ≤ 20mm/35mm/80mm |
| Bottom Paper Width | ≥ 4mm, ≤ 25mm/40mm/88mm |
| Reel Holder Core Size | Standard Inner d 3 inches(76.2mm), Outer D 8 inches(200mm) |
| Feeding Position Accuracy | X-axis ±0.1mm; Y-axis ±0.1mm |
| Feeding Speed | Max 120mm/s |
The FUJI NXT Label Feeder is designed to automatically feed labels to SMT pick and place machines.
Instead of placing labels manually, the feeder peels each label from its backing paper and delivers it to a fixed pickup position. The placement head then picks up the label for the next production step.
It helps reduce manual handling and makes label feeding more consistent during PCB assembly.

Available configurations include:
Compatibility Note: The correct feeder version must be confirmed according to the machine platform, feeder base height and communication requirements. Please provide your machine model before ordering.
The feeder can be used for different label and thin-material feeding applications, subject to the feeder configuration and material specifications.
Typical materials include paper labels, protective films, foam, double-sided adhesive materials, conductive adhesive, copper foil and other suitable materials.
To confirm the correct feeder version, please send us:
Our team can check the application and recommend a suitable feeder configuration.
1. Can one FUJI NXT label feeder be used on all NXT machines?
Yes,it’s compatible for all FUJI models.
2. Can the FUJI NXT label feeder also work on XPF machines?
Yes, it can. They’re same label feeder version because their feeder base height and communication are the same.
3. What information is needed to select a label feeder?
Please provide the machine model, label dimensions, bottom paper width, label arrangement and material information. A label sample or photo is also helpful.
Send us your machine model and label specifications. We’ll check the compatibility and recommend a suitable feeder configuration.
