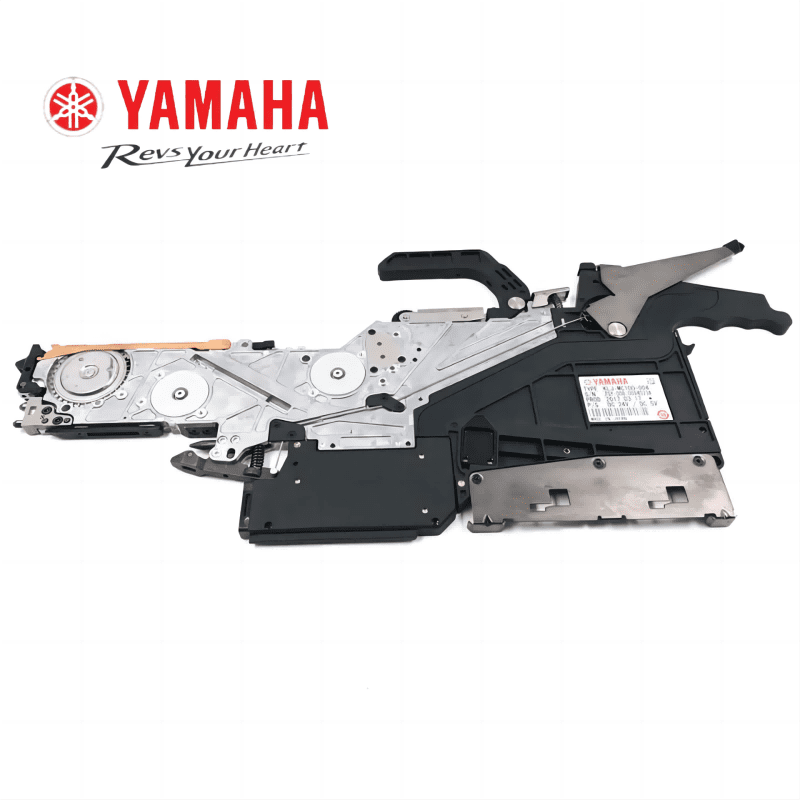

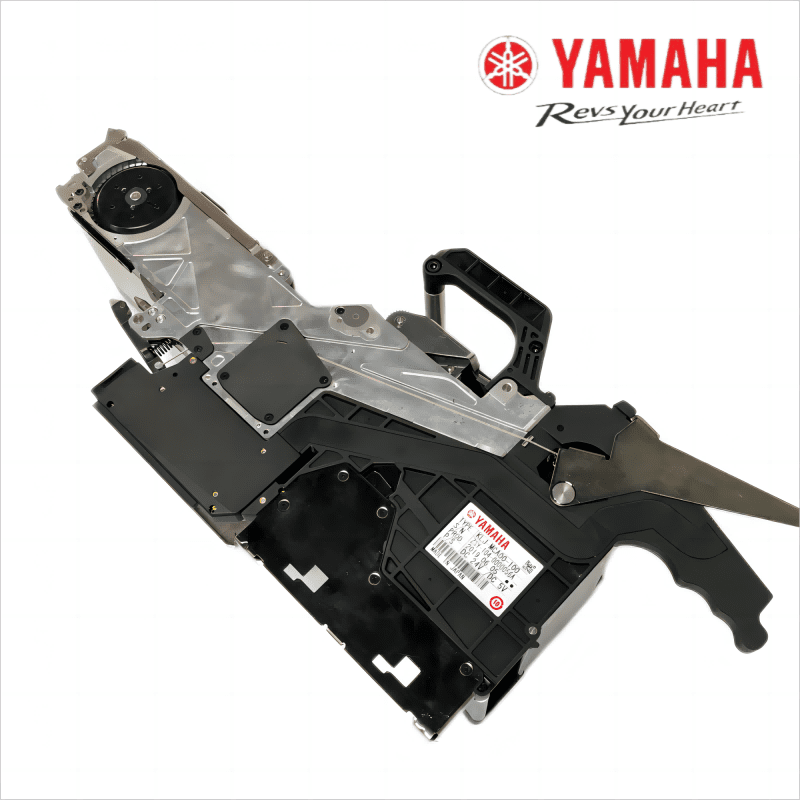

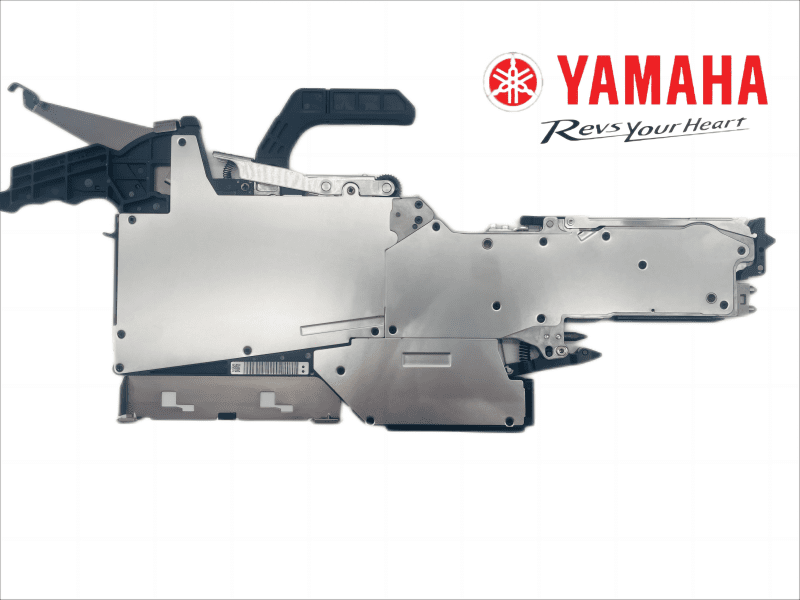

Yamaha Electric ZS feeder

The new control algorithm, lightweight and compact design of the Yamaha high-speed feeding motorized ZS feeder, and can achieve your PCB mounting.

Additional information

Part number

KLJ-MCN00-200, KLJ-MC100-011, KLJ-MC200-011, KLJ-MC300-011, KLJ-MC400-011, KLJ-MC500-011, KLJ-MC600-011, KLJ-MC700-011, KLJ-MC800-011, KLJ-MC900-011, KLJ-MCA00-100

Structure

Single tape

Applicated Material

Tape reel component

Control method

Electric

Applicated Component Packing

Tape feeder

Yamaha Electric ZS feeder

Product Details:

Yamaha Electric ZS feeder:

  • ZS tape feeder can be used for YS12, YS24, YS88, YS100, YSM10,YSM20, and YSM40R series machines.
  • A lightweight and compact designed electric feeder with a new control algorithm to achieve high-speed PCB mounting.
  • Feeding components range from 0201mm to 6.5mm square on up to 2mm height.
  • Gears with bearings for high-speed feeding.
  • Type 4mm to 104mm available.
