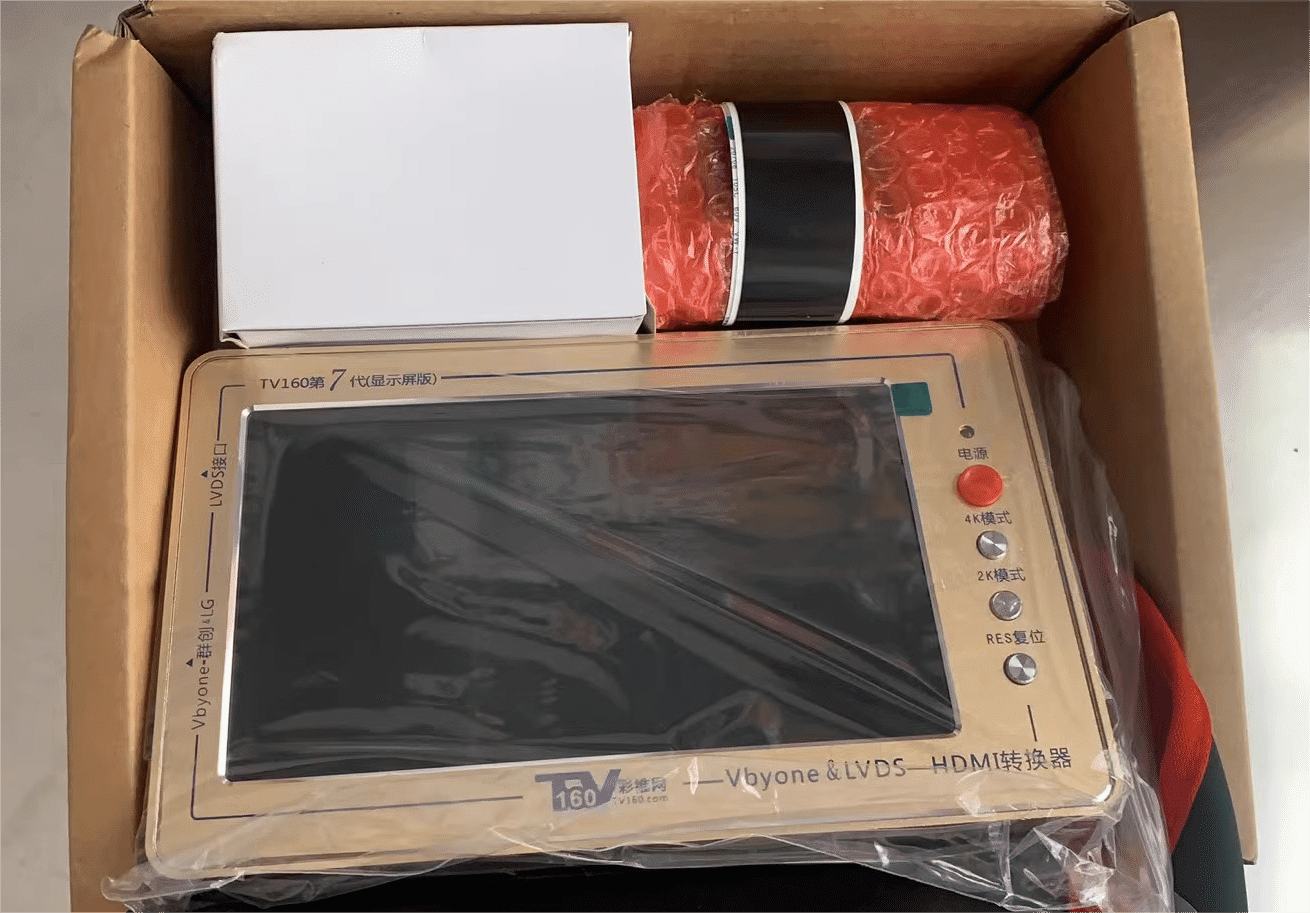

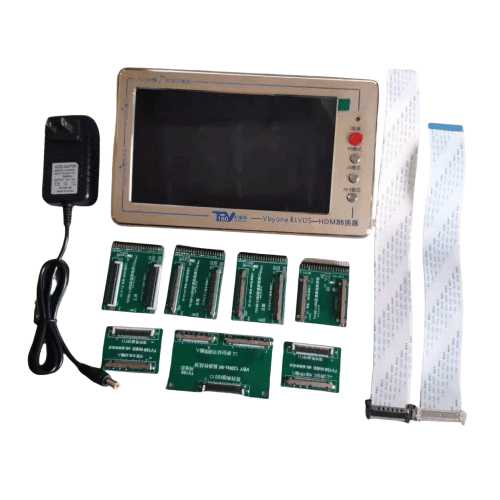

TV160 7th Generation Tester tool LCD display 4k Tester Mainboard

TV160 7th Generation Tester tool LCD display V-by-one(4K TTL) and LVDS to HDMI converter for TV motherboard

Additional information

Part name	Generation Tester tool
Model Number	TV160-7
Size	7 inches
Resolution	LVDS (2K mode), V-by-one (4K mode)
Signal	6-bit, 8-bit, 10-bit, VASA, JEIDA formats
Adapter	5-12V power adapter

The 7th V-by-one(TTL) and LVDS to HDMI converter uses the powerful A7 processor
Supports LVDS signals in 6-bit, 8-bit, or 10-bit VASA and JEIDA formats
Support LVDS signals of 60Hz, 120Hz, and 240Hz single screen line and double screen line for 2K TV products.
Good compatibility. Supports 4, 8, and 16 V-by-one (30/60/120Hz) signals, and is compatible with all LVDS and V-by-one TV core motherboards.
TV motherboards include brands Skyworth, Hisense, Changhong, TCL, LG, Samsung, Konka, Haier, and other brand-name machines
This converter comes with a 7-inch 1024*600mm screen. During factory production testing, it outputs 1080P/60Hz HDMI format signals with high resolution and can be directly connected to a monitor or TV.
Automatically identify LVDS and V-by-one signals, and realize cyclic switching between LVDS (2K mode) and V-by-one (4K mode) by pressing the button
Equipped with power adapter 5V-12V
