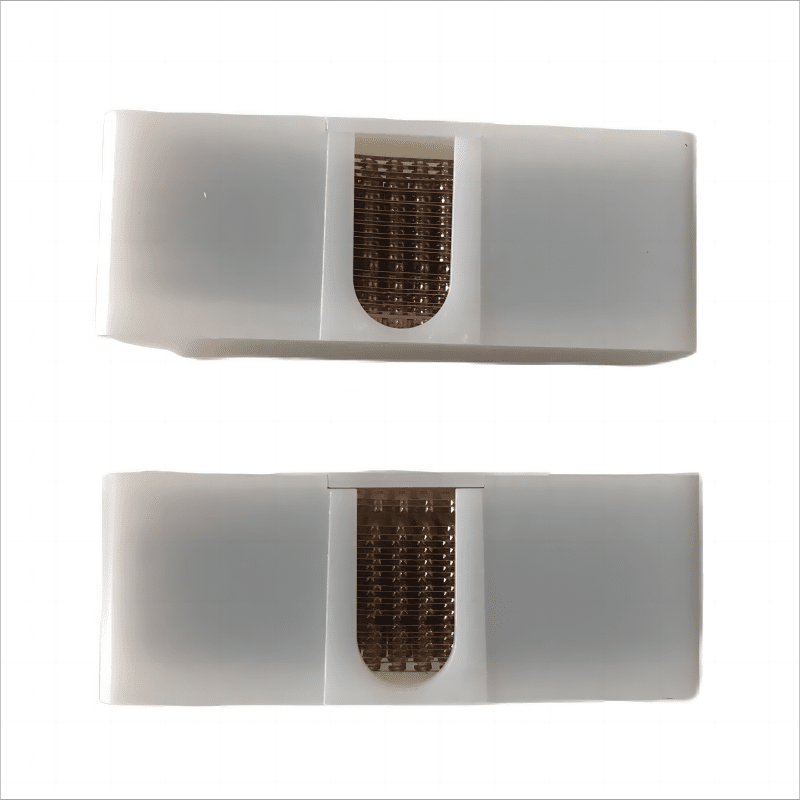

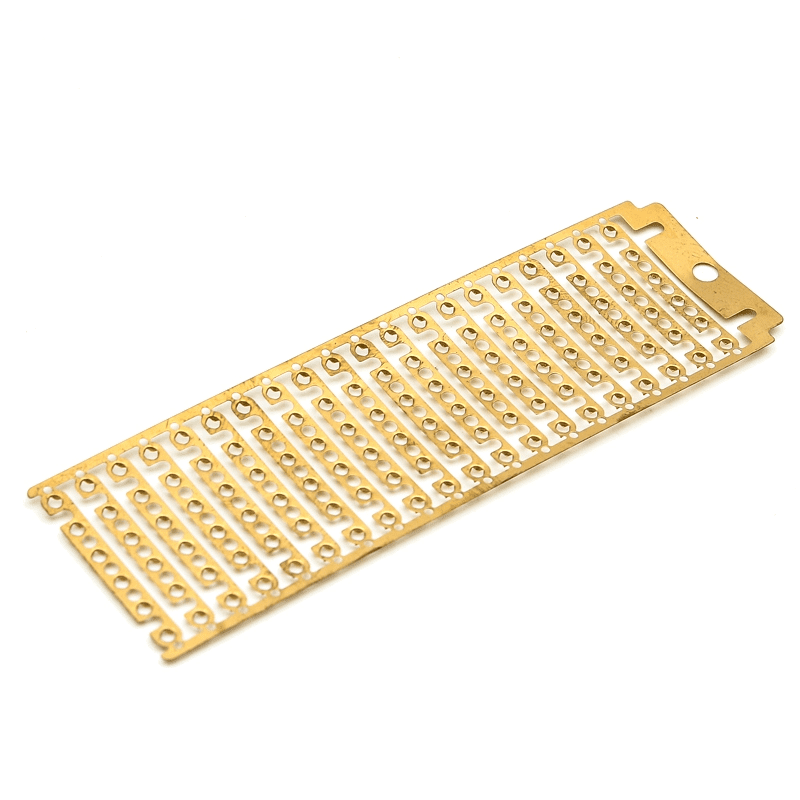

Splicing Shims Clip Frame

SMD Tape Splicing clip frame securely holds the two ends of the component tape together, preventing any misalignment or separation during operation

Additional information

Part Number	Clip Frame 01-FS
Color	Gold
Type side	Clip frames
Material	Copper
Applicated brand machine	Panasonic, Yamaha, ASM, Hitachi, FUJI, Samsung, Hanwha, Juki

Alignment: The splicing clip frame is designed to precisely align the component tape, ensuring that components are picked accurately during the manufacturing process.
Compatibility: It is typically designed to be compatible with a range of component tape sizes and types commonly used in the industry.
Secure Connection: The clip frame securely holds the two ends of the component tape together, preventing any misalignment or separation during operation.
Durable Construction: These frames are often made from durable materials to withstand the rigors of industrial use and provide long-lasting performance.
Easy Setup: They are typically designed for easy installation and use, allowing for quick and efficient splicing of component tapes.
Transparent Design: Some clip frames have a transparent or clear section that allows operators to monitor the components on the tape and ensure that the splice is positioned correctly.
Anti-static Properties: To protect sensitive electronic components, some clip frames may have anti-static or ESD (Electrostatic Discharge) properties.
Reusability: Depending on the design, clip frames may be reusable for multiple splicing operations, contributing to cost efficiency.
Compatibility with Automation: They are often designed to work seamlessly with automated pick-and-place machines, allowing for uninterrupted production.
