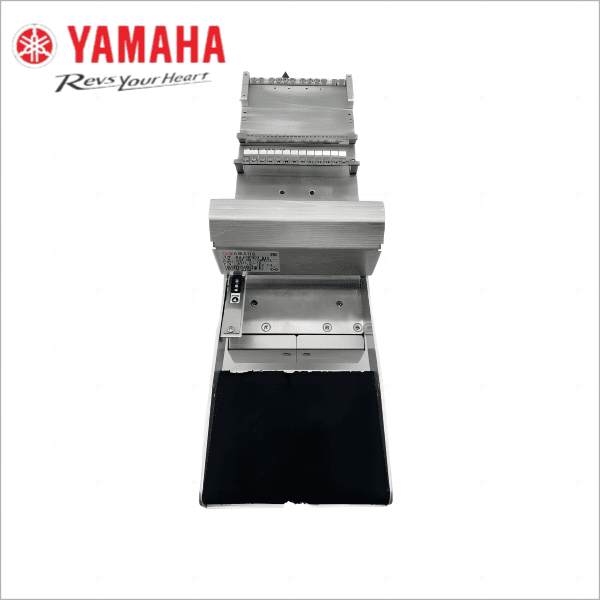

Yamaha SMT vibration feeder KHJ-MCH00-010

SMT vibration feeder is working automating and optimizing the component feeding process. Accurately orienting and delivering components to the pick-and-place head, the feeder contributes to efficient, precise, and reliable electronic assembly, enhancing the overall performance of the mounter.

Additional information

Part number

KHJ-MCH00-010

Structure

Motorized

Applicated Material

Supply of Tube IC material

Control method

Electric

Applicated Component Packing

Vibratory feeder, Stick Feeder

Yamaha SMT vibration feeder KHJ-MCH00-010

Product Details:

The SMT vibration feeder in a Yamaha SMT mounter serves a crucial function in the automated assembly process.

This component is responsible for precisely orienting and delivering small electronic components, such as resistors, capacitors, and integrated circuits, to the pick-and-place head of the mounter. The primary function of the SMT vibration feeder in a Yamaha SMT mounter includes:

  1. Component Orientation: The vibration feeder uses controlled vibrations to align and orient electronic components consistently, ensuring that each component is presented to the pick-and-place head in the correct position for placement.
  2. Efficient Component Delivery: The feeder ensures a continuous and reliable supply of components to the pick-and-place process, optimizing the machine’s throughput and production speed.
  3. Minimized Jamming: By using controlled vibrations, the feeder reduces the likelihood of components getting stuck or jammed, ensuring a smooth flow of parts to the assembly area.
  4. Precision Placement: Properly oriented components are picked up by the pick-and-place head with accuracy, leading to precise and consistent placement on the printed circuit board (PCB).
  5. Variety of Component Sizes: The feeder can be adjusted to accommodate various component sizes, making it versatile for different assembly requirements.
  6. Reduced Manual Intervention: The vibration feeder automatic feeding process minimizes manual operations in component handling, increasing efficiency and reducing the risk of errors.
  7. Compatibility: The SMT vibration feeder is compatible with different types of components, making it suitable for a wide range of electronic assembly tasks.
  8. Optimized Production: The consistent orientation and delivery of components contribute to the overall quality and reliability of the assembly process, ensuring minimal defects and consistent output.
  9. Time Savings: By automating the component feeding process, the SMT vibration feeder saves valuable time during the assembly process, increasing productivity.
