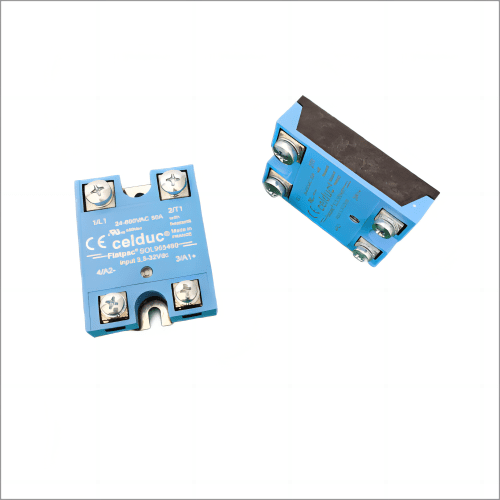

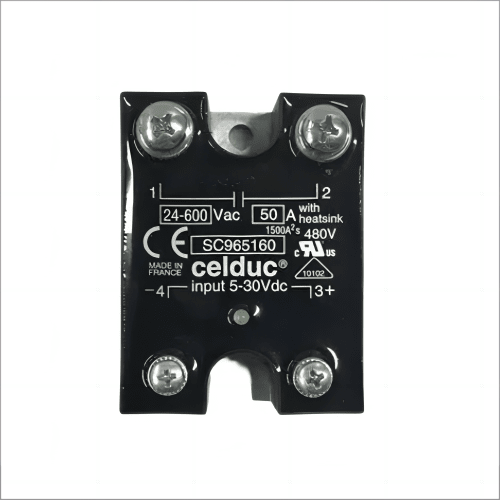

Solid State Relay in a Heller reflow oven is integral to maintaining precise and reliable temperature control during the reflow soldering process. By offering fast response times, reduced noise, and extended lifespan, these solid-state relays contribute to the efficiency and consistency of the oven’s heating system.
| Part Number | 7581, 2566K |
|---|---|
| Application | Used for Heller reflow oven of Solid State Relay |
| Material | Metal and Plastic |
Solid State Relay (SSR) in a Heller reflow oven controls the electrical heating elements within the oven’s heating chambers.
These electronic devices are designed to switch high-power electrical loads, such as heating elements, using semiconductor components rather than traditional mechanical switches. The primary function of SSRs in a Heller reflow oven includes:
1. Precise Temperature Control: SSRs enable precise and rapid switching of heating elements on and off, ensuring accurate temperature control throughout the reflow process. This control is essential to follow specific temperature profiles for soldering.
2. Reliable Operation: Unlike mechanical relays, SSRs have no moving parts, which minimizes wear and tear. This reliability contributes to the consistent performance of the oven over time.
3. Fast Response Time: SSRs can switch heating elements on and off much faster than mechanical relays. This rapid response time allows the oven to quickly adjust to changes in temperature requirements during the soldering process.
4. Noise Reduction: SSRs generate less electrical noise compared to mechanical relays, leading to a cleaner and more stable electrical environment within the oven.
5. Longevity: SSRs have a longer operational lifespan due to the absence of moving parts. This reduces the need for frequent replacements and maintenance.
6. Compact Design: SSRs are relatively compact and can be mounted directly on circuit boards, saving space within the oven’s control system.
7. Safety and Isolation: SSRs provide electrical isolation between the control circuit and the load circuit. This isolation enhances safety by minimizing the risk of electrical interference or shock to operators.
8. Compatibility: SSRs can be easily integrated with digital control systems, allowing for precise and programmable temperature profiles during reflow soldering.
9. Efficiency: SSRs have low power consumption during operation and generate less heat compared to mechanical relays, contributing to the oven’s overall energy efficiency.
