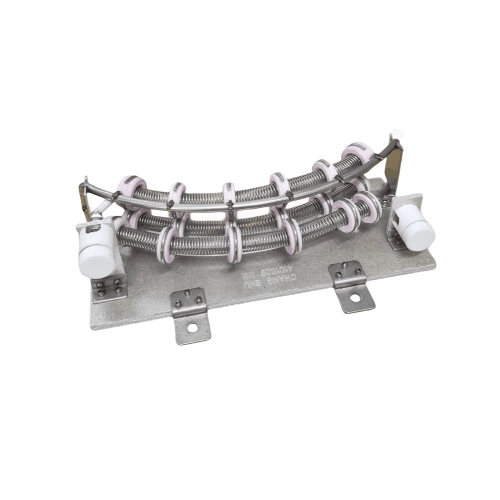

Heller Reflow Oven Resistance 595095

Oven resistance elements are the form of heating elements or heating coils, that are responsible for generating and maintaining the required heat levels for the reflow soldering process.

• Heat generation: resistance converts electrical energy into heat. As current flows through the resistance elements, they generate heat through the resistance phenomenon to keep the Heller oven working.
• Temperature Control: The resistances are carefully calibrated to provide precise and controllable heat levels within the reflow oven’s heating zones. This allows the oven to follow specific reflow profiles, with accurately controlled temperature ramps and dwell times.
• Reflow Soldering: The generated heat from the resistances is directed toward the printed circuit boards (PCBs) placed inside the oven. This elevated temperature is essential for melting the solder paste on the PCB and forming reliable solder joints between components and the PCB.
• Uniform Heating: The arrangement of resistances within the reflow oven is designed to ensure even and consistent heating across the entire surface of the PCB. This uniform heating is crucial for achieving consistent soldering results on all components.
• Zone-Based Heating: Heller Reflow Ovens often feature multiple heating zones with individual sets of resistances. These zones enable precise control over the temperature profile that the PCB undergoes during the reflow process.
• Rapid Temperature Changes: The resistances can be controlled to change temperature rapidly, transitioning between different temperature zones as per the reflow profile. This capability is important for preventing thermal shock to components.
• Energy Efficiency: Modern resistance elements are designed for energy efficiency, ensuring that the heat generated is effectively utilized for soldering while minimizing energy wastage.
• Reliability and Longevity: High-quality resistances used in Heller Reflow Ovens are built to be durable and reliable, providing consistent performance over extended periods of use.
