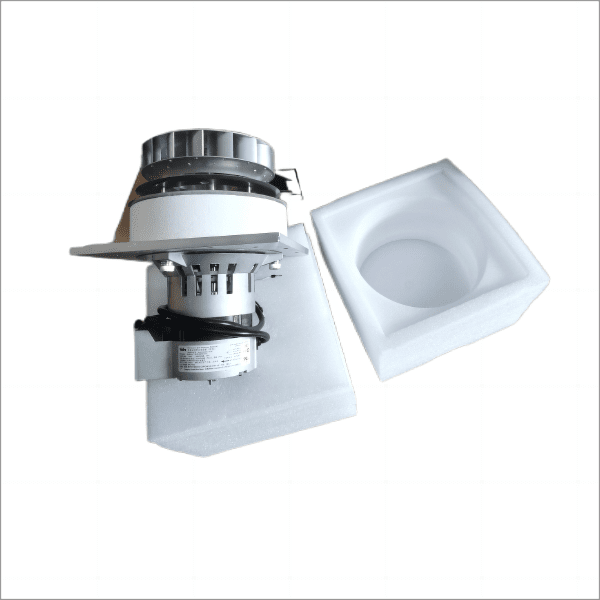

Heller MK3 Reflow Oven blower motor Assy

The blower motor assy in the Heller MK3 reflow oven is responsible for generating and maintaining the circulation of hot air within the heating chamber of the oven during the reflow soldering process.

1. Uniform Heat Distribution: The blower motor ensures the even distribution of hot air throughout the reflow oven’s heating chamber. This uniform heat distribution is essential for achieving consistent and reliable soldering results across the entire printed circuit board (PCB).

2. Temperature Control: By continuously circulating hot air, the blower motor assists in maintaining precise temperature control within the reflow oven. This control is necessary to follow specific reflow profiles that dictate temperature ramps and dwell times for different solder paste types.

3. Optimized Solder Paste Melting: The hot air circulated by the blower motor effectively melts the solder paste applied to the PCB. This process is critical for creating reliable solder joints between components and the PCB, ensuring proper electrical connections.

4. Reduced Thermal Variations: The blower motor minimizes thermal variations within the oven’s chamber, which helps prevent solder defects such as insufficient reflow, tombstoning, or solder balling.

5. Enhanced Energy Transfer: By continuously blowing hot air over the PCB, the blower motor enhances the transfer of thermal energy to the components and solder paste. This accelerates the reflow process, leading to improved solder joint formation.

6. Efficient Cooling: After the reflow process is complete, the blower motor can also assist in cooling the PCB and components gradually. Controlled cooling helps prevent thermal shock and warping of components.

7. Consistency and Reproducibility: The blower motor’s consistent circulation of hot air contributes to the reproducibility of soldering results, ensuring that each PCB undergoes the same reflow profile and achieves consistent solder joint quality.
