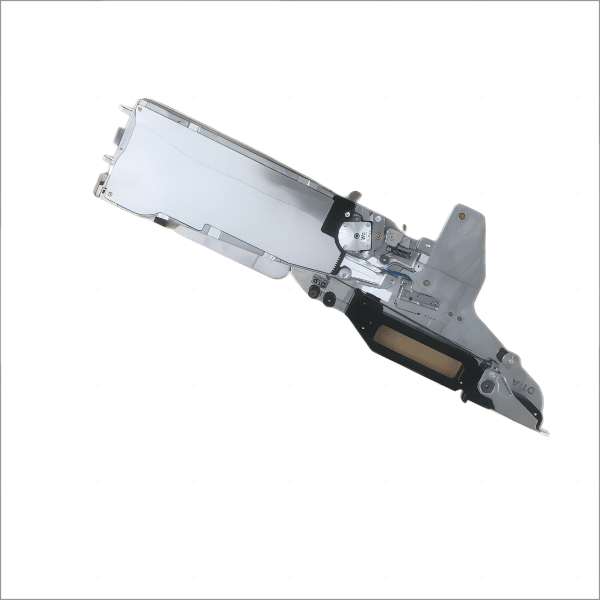

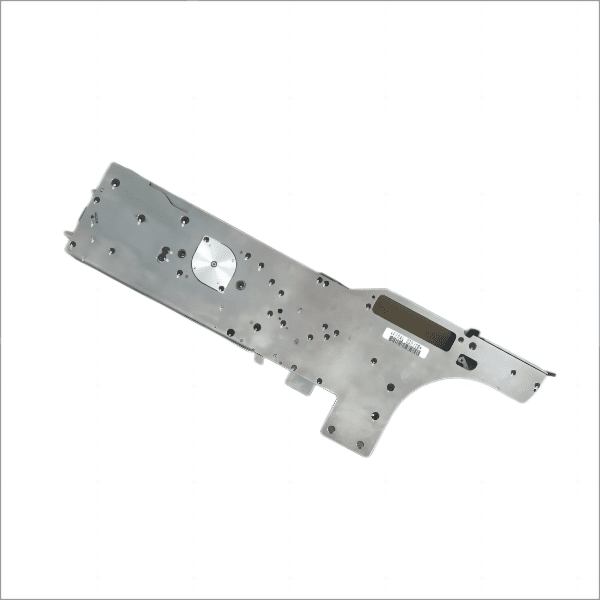

FUJI Intelligent Feeders of AIMEX NXT M3

High Compatibility NXT intelligent feeders can load all material components of the mounter by placing PCB.

Additional information

Tape size	4mm, 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm, 104mm
Part number	W04B AA81R42, W04B UF08600, W04F 2UDLFA001400, W04F 2UDLFA001300, W08C AB09926, W08C UF09800, W08C UF09700, W08C 2UDLFA000200, W08F 2UDLFA001200, W08F 2UDLFA001000, W08F 2ADLFA006104, W12F 2UDLFB000900, W12F 2UDLFB000600, W12F 2UDLFB001100, W12C UF10000, W12C UF10100, W12C UF10200, W16F 2UDLFB000700, W16F 2UDLFB001300, W16C UF10300, W16C UF10400, W24C AB10215, W24C UF10500, W24C UF10600, W32C AB10312, W32C UF10800, W32C UF10700, W44C AB10413, W44C UF10900, W44C UF11000, W56C AB10512, W56C UF11100, W72 UF02500, W72 AA2GZ37, W88 UF05300, W88 UF02600, W104 UF05000, W104 UF09600
Structure	Single tape
Applicated Material	Tape reel component
Control method	Electric
Applicated Component Packing	Tape feeder

NXT M3 III AIMEX Electric intelligent Feeder wide tape:

FUJI wide tape feeders can be used for PNP machines NXT III, AIMEX III, NXT-H, NXTR, NXTR PMand so on.
The type of components feeding for H12 head: 0402 (01005″) to 7.5mm x 7.5mm, Max height 3mm; H04 head: 1608 (0603″) to 15mm x 15mm, Max height 3mm; H01 head: 1608 (0603″)to 74 x 74 (32 x 100), Max height 25.4mm.
Feeder tape size from 4mm to 104mm to suit all standard-size components.
Power supply: From the mounter and itself motor.
The intelligent NXT feeder works with pick and place mounter and can achieve small chips with efficient placement accuracy to +/-0.025 mm.
