DEK Calibration board 134765 and board plate 140403

DEK Calibration board 134765 and board plate 140403
DEK Calibration board 134765 and board plate 140403 - Image 2

DEK & ASM printer’s calibration board ensures precise PCB printing through alignment, registration, and vision system optimization for impeccable production quality

Additional information

Part Number

134765, 140403
Application

Used for DEK Printing machine of calibrate tools
Material

PCB, Metal
Color

Yellow, Silver
ASK FOR QUOTE

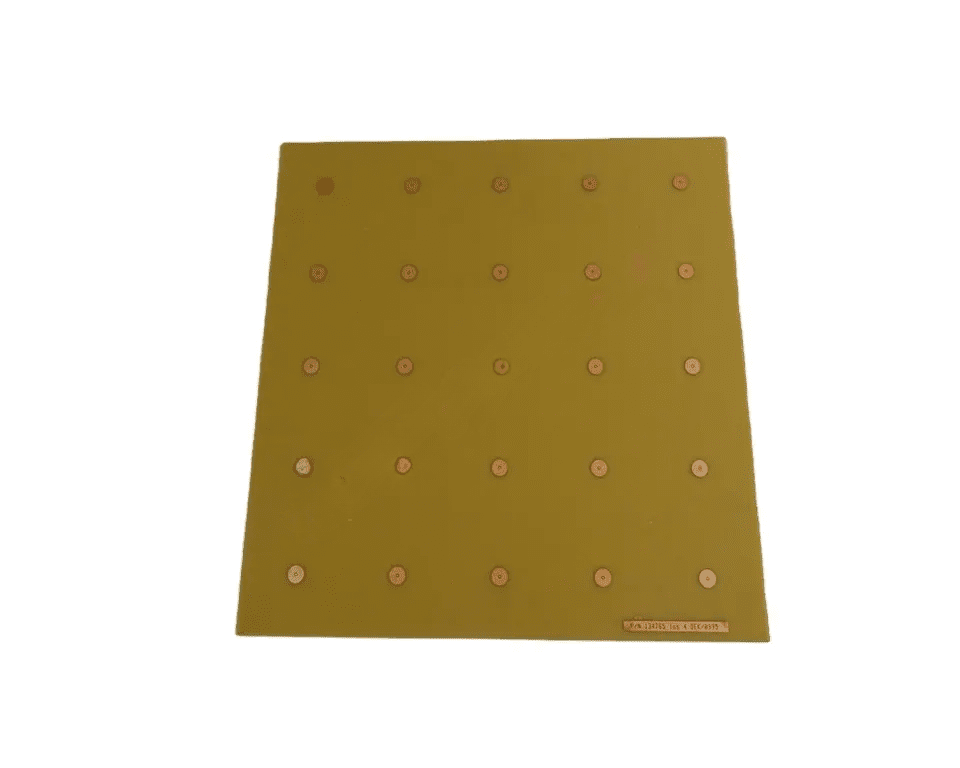

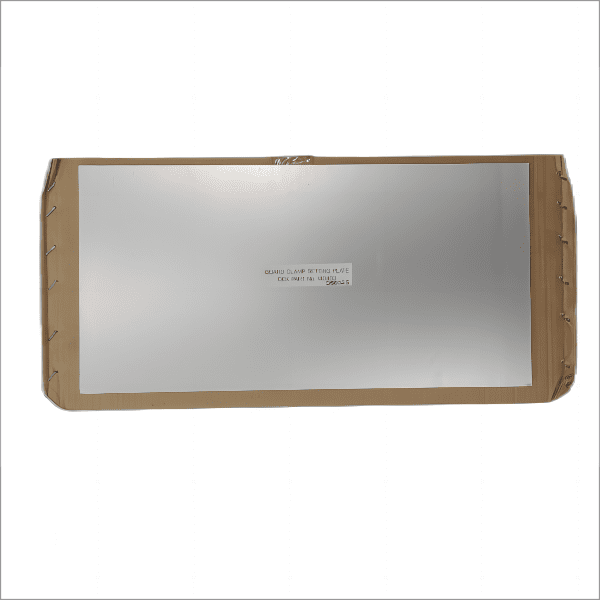

DEK Calibration board 134765 and board plate 140403

Product Details:

  • Alignment Accuracy: The calibration board 134765  and board plate 140403 ensure that the printer’s vision system is accurately aligned with the printing area. This alignment is crucial to prevent the misplacement of components and ensure precise printing.
  • Stencil-to-Board Registration: The calibration board helps in achieving optimal registration between the stencil and the PCB. This is essential to ensure that solder paste or other materials are deposited precisely onto the intended locations on the board.
  • Fine-tuning the vision system: using the DEK Calibration Board 134765 and board plate 140403, you can fine-tune the printer’s vision system. This includes adjusting lighting, focus, and image processing parameters to improve the accuracy of component placement.
  • Minimize defects: correct calibration minimizes defects due to misalignment or incorrect registration. This reduces rework and improves the overall quality and reliability of printed circuit boards.
  • Consistency in Production: The calibration board plays a pivotal role in maintaining consistency throughout the production process. It ensures that each board receives the same level of accuracy and alignment, resulting in uniform product quality.
