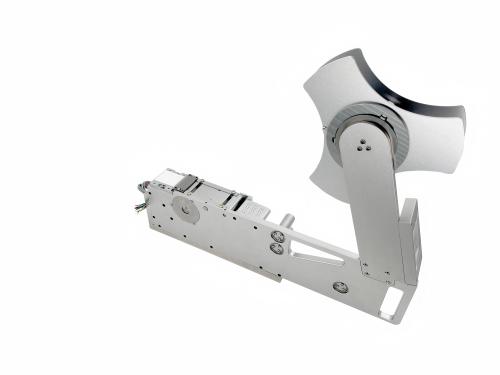

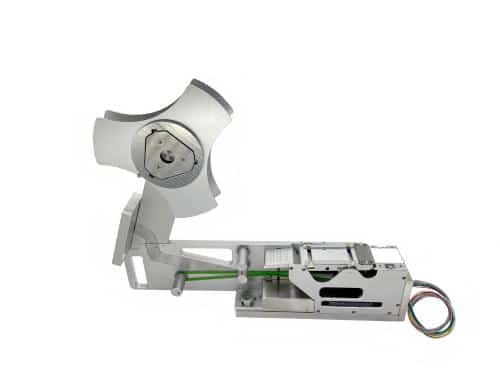

Cobot label feeder Robotic label feeder

SMT feeder cobot label feeder for COBOT Device ABB,Universal robotic label feeder for single-line labels or multi-line labels

Additional information

Label Types	Paper labels/ESD pad/Protective film/Foam/Double-sided adhesive/Conductive adhesive/Copper foil/Steel sheet/Reinforcement plate, etc.
Label Length	≥ 2mm~40mm/80mm
Label Width	≥ 2mm~40mm/80mm
Reel Holder Size	Standard Inner d 3 inches(76.2mm), Outer D 8 inches(200mm)
Feeding Accuracy	X-axis ±0.1mm; Y-axis ±0.1mm
Feeding Speed	Max 120mm/s

• Designed with sturdy aluminum alloy, lightweight yet durable;

• Advanced forward-feed supply mechanism, peeling before suction;

• Provide COBOT Device ABB, Universal robotic label feeder for single-line
label or multi-line labels;

• Communication method 2, optional:

1. No signal, feed materials in sequence.
After the cobot picks up a label, it will immediately pick up the next label.

2. Signal. After the feeder finishes feeding, it notifies the cobot to come and pick up the material

• ±0.1mm feeding accuracy and >99.8% discharge rate;

• Utilizes a digital display, showcasing excellent control performance;

• Closed-loop control structure, preventing missed steps while dynamically
Adjusting output torque in real-time for stable discharge;

• Automatic feeding.
