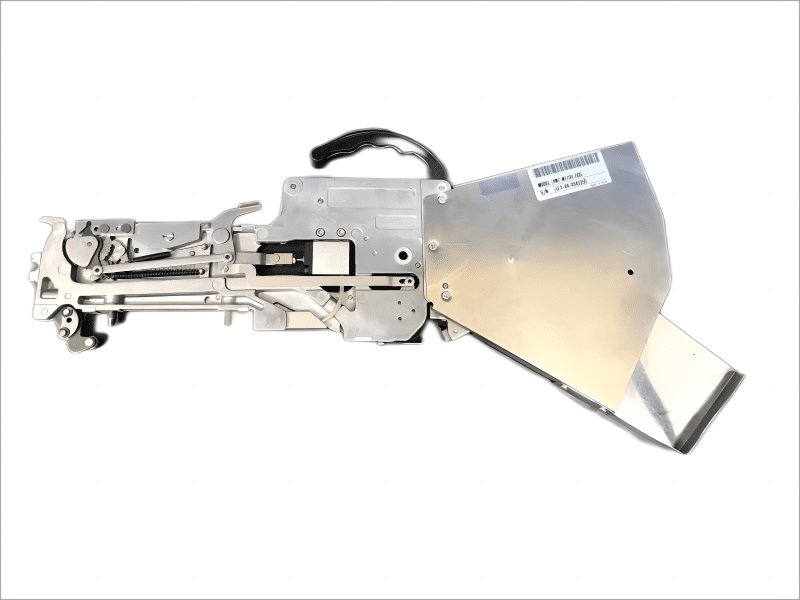

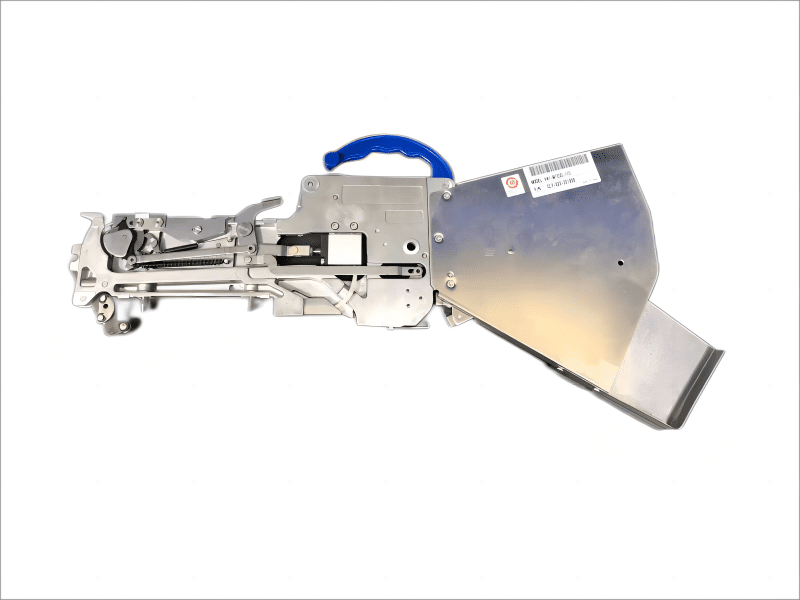

Assembleon Topaz CL Pneumatic tape feeder

The Favorable and versatile Assembleon intelligent feeder achieves great accuracy in the chip components mounting with PCB.

Additional information

Tape size

8x2mm 01005, 8x2mm 0201, 8x2mm 0402, 8x4mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm

Part number

9498 396 02008 PA2903-96, 9498 396 00339 PA2903-77, 9498 396 00340 PA2903-78, 9498 396 00341 PA2903-79, 9498 396 00342 PA2903-88, 9498 396 00338 PA2903-27, 9965 000 15825 PA2903-38, 9965 000 15826 PA2903-48, 9965 000 15827 PA2903-58, 9965 000 15828 PA2903-68, 9498 396 01977 PA2903-67

Structure

Single tape

Applicated Material

Tape reel component

Control method

Pneumatic

Applicated Component Packing

Tape feeder

Assembleon Topaz CL Pneumatic tape feeder

Product Details:

Assembleon Topaz CL Mechanical Tape Feeder:

  • Assembleon pneumatic tape feeders can be used for PNP machine Topaz, Topaz X, Topaz XII, Opal Xii, Sapphire-Xii, MG1, MG2, EMERALD X II, SAPPHIRE, COMET, and so on.
  • The type of components feeding 0201, 0402~L24×W24mm, Height below 65mm.
  • Feeder tape from 8mm to 72mm to suit all standard-size components.
  • PNP machine accuracy with the Assembleon feeder can reach CHIP±0.05mm and QFP±0.03mm.
