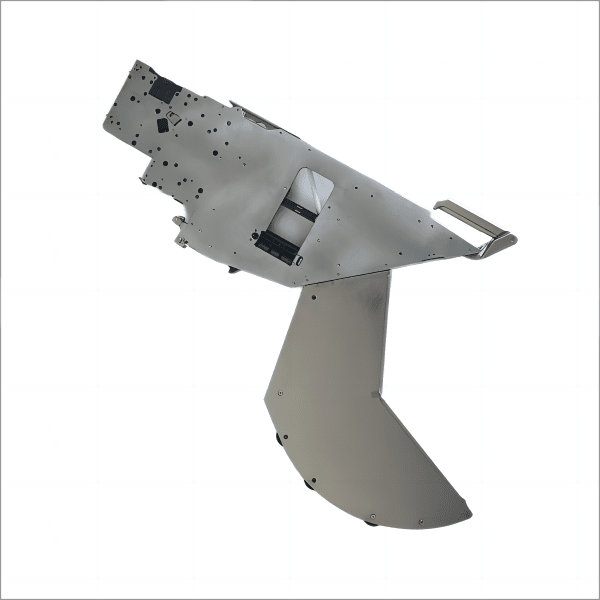

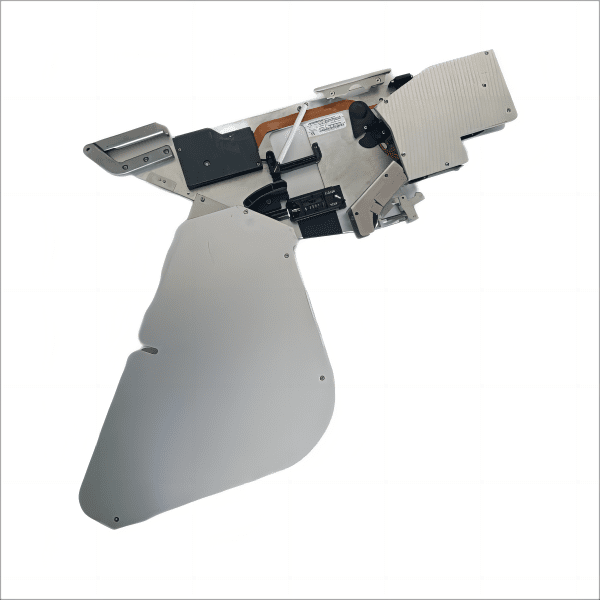

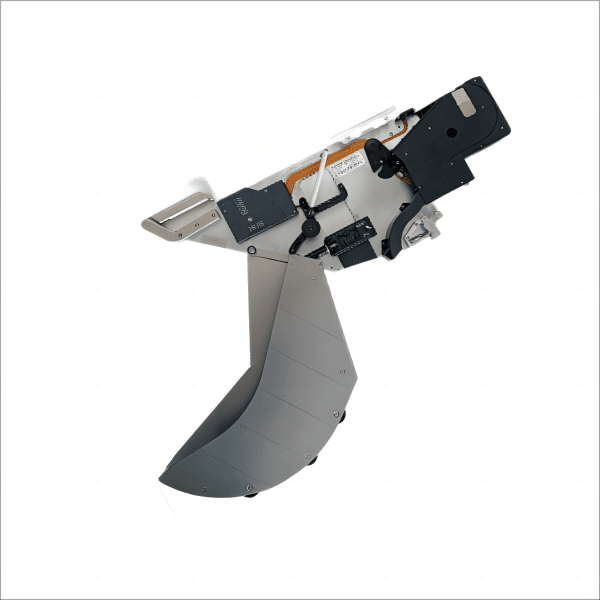

Assembleon ITF Feeder ITF2 R4.1 tape feeder

The high pick performance of the Assembleon ITF Feeder PNP intelligent twin or single feeder achieves large feeding in the chip components mounting with PCB.

Additional information

Tape size

ITF 8mm twin tape, ITF2 8mm, ITF2 12mm, ITF2 16mm, ITF2 24mm, ITF2 32mm, ITF2 44mm, ITF2 56mm

Part number

PA2657-00, PA2654-08, PA2654-18, PA2654-28, PA2654-38, PA2654-48, PA2654-50, PA2654-60

Structure

Single tape, Twin tape

Applicated Material

Tape reel component

Control method

Pneumatic

Applicated Component Packing

Tape feeder

Assembleon ITF Feeder ITF2 R4.1 tape feeder

Product Details:

Assembleon ITF2 R4.1 Feeder:

  • Assembleon pneumatic feeders can be used for PNP machine Topaz, ACM, AQ-1, AX-3, AX-5, D-9, FCMII (FCM2), GEM-Xi series, and so on.
  • The type of components feeding 0201, 0402~L45×W45mm, Max height 10.5mm.
  • Feeder tape from 8mm to 56mm to suit all standard-size components.
  • P&P machine pick performance with the ITF2 feeder can reach 99.95%.
